Long Lifespan High Frequency Welding Machine Plastic / Rubber Cutting Knife

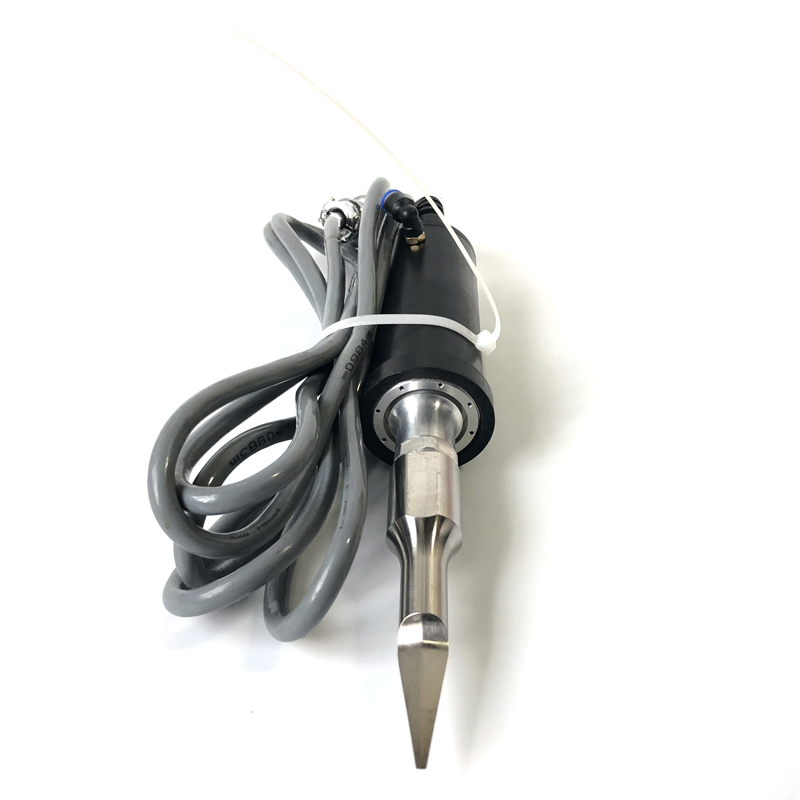

ultrasonic cutting knife for plastic and rubber 35khz 300W handheld ultrasonic knife

The basic composition of the acoustic cutting machine is as follows. Ultrasound transducer, ultrasonic horn, ultrasonic cutting knife, ultrasonic generator.

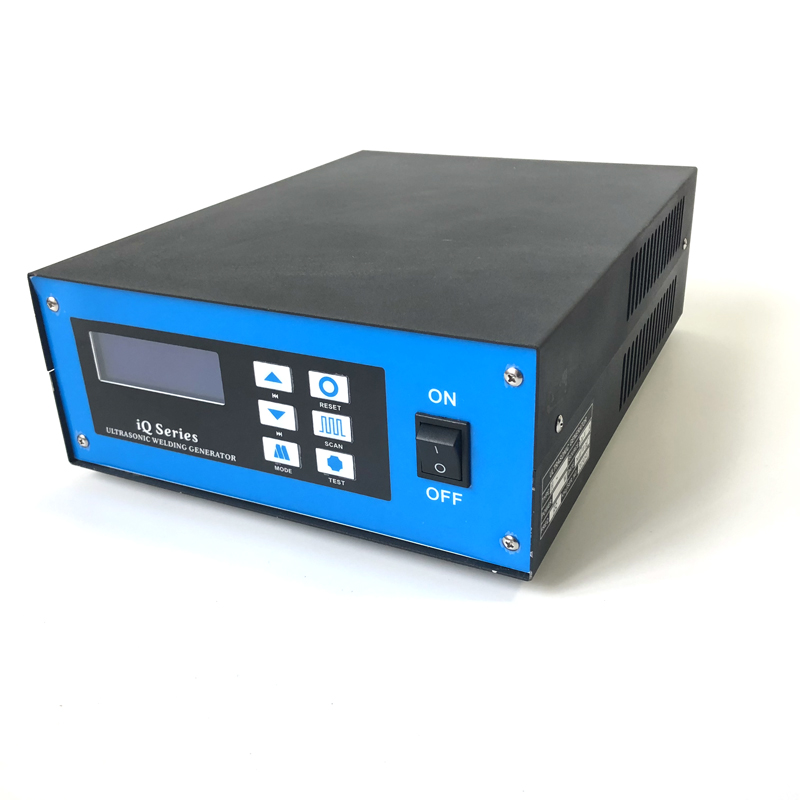

The ultrasonic generator
The municipal electricity is converted into high frequency and high voltage AC current, which is fed to the ultrasonic transducer. Ultrasound transducer is equivalent to energy conversion device, which can convert the input electric energy into mechanical energy, that is, ultrasound. The ultrasonic transducer moves back and forth longitudinally, and the frequency of the telescopic motion is equal to the frequency of high frequency AC current supplied by the driving power supply.

Traditional cutting uses cutting tools with sharp edges to press the material to be cut. The pressure is concentrated at the edge, and the pressure is very high, which exceeds the shear strength of the material being cut. The molecular bond of the material is pulled open and cut. Because the material is pulled apart by strong pressure, the cutting edge of the cutting tool should be very sharp, and the material itself should bear relatively large pressure. The cutting effect of soft and elastic materials is not good, and it is more difficult for viscous materials.

ultrasonic cutting knife for plastic and rubber 35khz 300W handheld ultrasonic knife

ultrasonic plastic welding machine

high frequency welding machine

Long Lifespan High Frequency Welding Machine Plastic / Rubber Cutting Knife Images
