PE PVC PP ABS Material Ultrasonic Welding Polycarbonate 40kHz Welder Long Lifespan

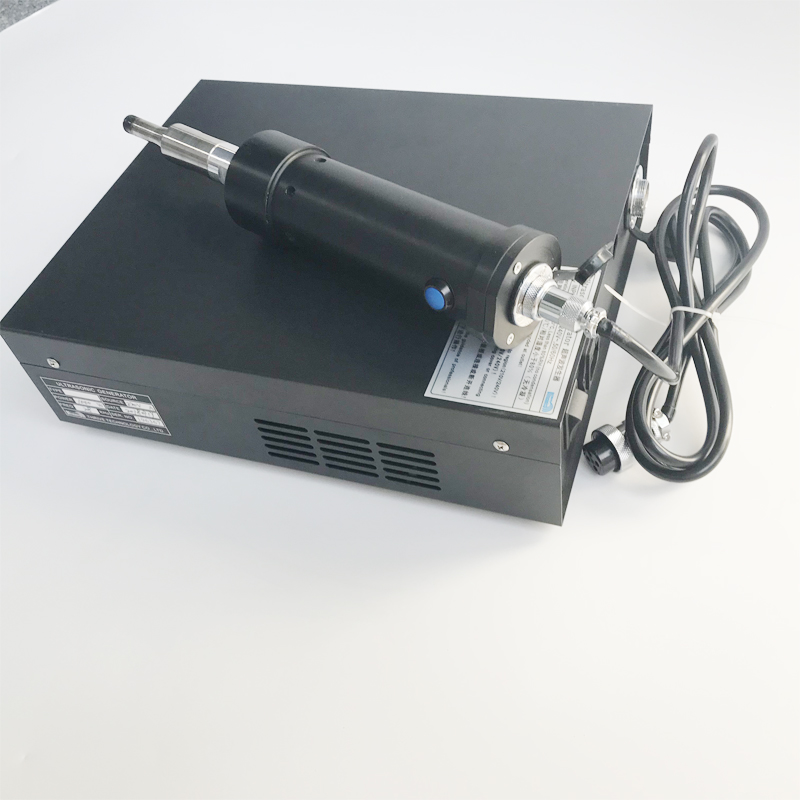

Hand-Held 40kHz Ultrasonic Welder for plastic welding machine PE PVC PP ABS material

[Ultrasound spot welding machine] Operation method:
Firstly, connect the ultrasonic output plug, connect 220V power supply after plugging in the power plug, turn on the power switch (power indicator light), and adjust the panel time according to the product requirements. Pick up the handle and press the handle button to check whether the ultrasound is normal {0.5A is normal when the ammeter on the panel is idle}. When the product is operated, the ultrasonic handle is held vertically to be placed on the product, and the button of the handle is pressed at the same time when the point force is applied. At this time, the ultrasonic wave reaches the set time and the product is welded. When the production task is completed, turn off the power supply.
Characteristic of the whole machine

The whole machine is light, compact and easy to put in and put in.
Welding head position is hand-held, flexible and convenient to operate.
It is suitable for chain welding, spot welding, sewing and welding edge.
It has unique effect on multi-point riveting of irregular plastic products.

Hand-Held 40kHz Ultrasonic Welder for plastic welding machine PE PVC PP ABS material

ultrasonic plastic welding machine

high frequency welding machine

PE PVC PP ABS Material Ultrasonic Welding Polycarbonate 40kHz Welder Long Lifespan Images
