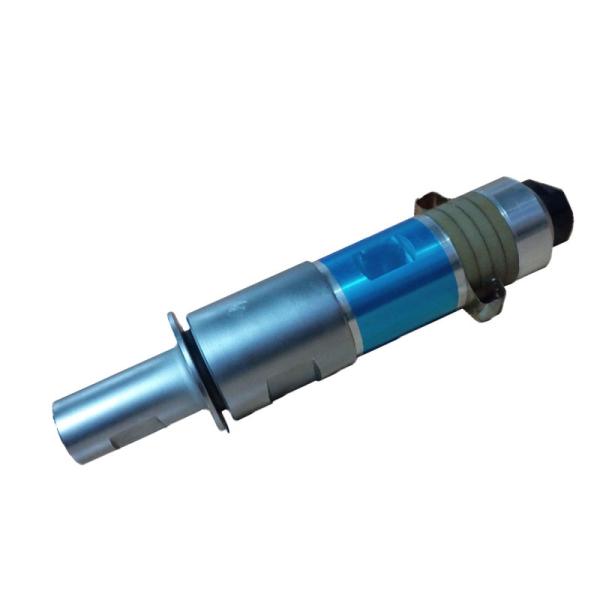

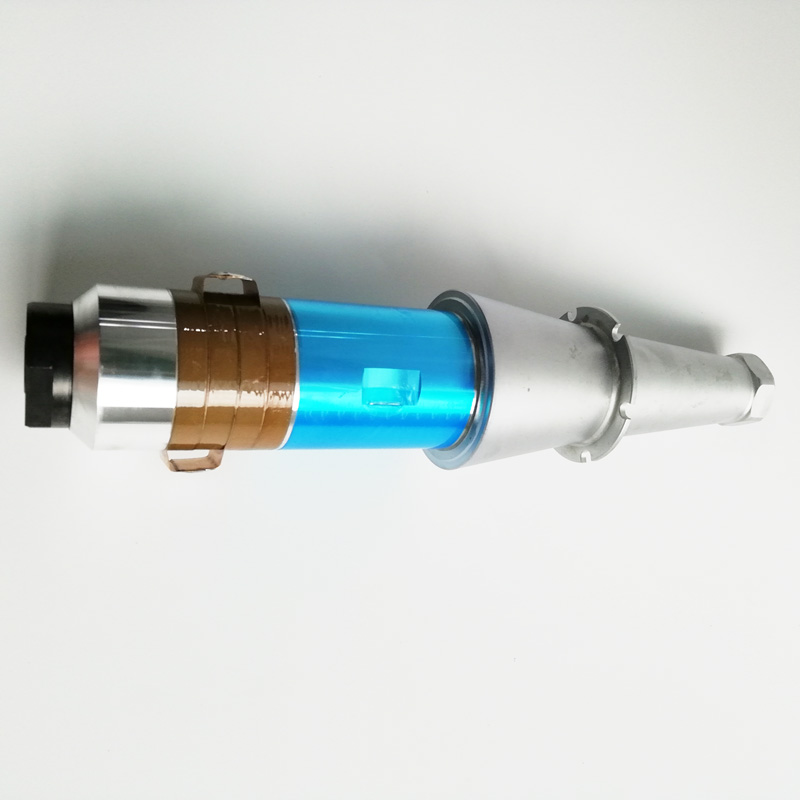

2000W ultrasonic aluminum welding transducer 20khz aluminum alloy ultrasonic welding transducer for welding machine
Ultrasound in plastic processing application principle: Ultrasound used in plastic processing, the existing several operating frequencies are 15KHZ, 18KHZ, 20KHZ, 40KHZ. Its principle is to use the wave crest position of longitudinal wave to transmit amplitude to the gap of plastic parts, under the condition of pressure, make two plastic parts or other parts collide with each other to produce melting, so that the plastic at the contact position can be melted and added. Purpose of work.
Ultrasound plastic welding machine for ultrasonic processing of thermoplastic adhesives is to use high-frequency friction between working surfaces to produce heat rapidly between molecules. When the heat is enough to melt, stop the ultrasonic vibration. At this time, the working interface solidifies by melting and completes the processing procedure. Usually, the frequencies used in plastic processing are 20KHZ and 15KHZ. The frequencies are beyond human hearing, so they are called ultrasound. Ultrasound welding machine should be applied to PP, PE, ABS, acrylic and other materials such as electronic industry, stationery industry, traffic equipment, toys, cosmetics, motor and so on. 15KHz ultrasonic plastic welding machine has its unique advantages in welding soft PE and PP materials, as well as large diameter and long length plastic welding parts. It can meet the needs of various products and contribute to improving production efficiency and product grade for users. Product scope of use: 1, plastic toys, water guns, aquarium games, children's dolls, plastic gifts, etc. 2, electronic products: recording, tape box and core wheel, disk shell, mobile phone battery board and rectifier transformer, switch socket, remote control, electronic mosquito racket, imitation bottle cap, etc. 3. Household appliances: electronic clocks, electric drum handlers, steam ironing water tanks, electric kettles, computers, etc. 4. Stationery daily necessities: stationery box, aquarium ruler, folder seam and shell, pen holder, cosmetic box case, toothpaste tube tail sealing, cosmetic mirror, insulating cup, lighter, condiment bottle and other sealed containers. 5. Automobiles and motorcycles: batteries, headlights, rear lights, meters, reflectors, etc.
| Type | Full-length(mm) | Joint Bolt(mm) | Frequency(KHz) | Resonance Impedance(Ω) | Capacity(pF) | Input Power
(W) |
| ARS-HJHNQ-152500 P8 | 153 | M20×1.5 | 15 | 15 | 13000 | 2500 |
| ARS-HJHNQ-152000 P8 | 167 | M20×1.5 | 15 | 10 | 9500 | 2000 |
| ARS-HJHNQ-151500 P4 | 171 | M18×1.5 | 15 | 12 | 12500 | 1500 |
| ARS-HJHNQ-151800 P4 | 118 | M20×1.5 | 20 | 15 | 15000 | 1800 |
| ARS-HJHNQ-202000 P8 | 128 | M18×1 | 20 | 10 | 11000 | 2000 |
| ARS-HJHNQ-202000 P8 | 124 | M18×1.5 | 20 | 12 | 10000 | 1500 |
| ARS-HJHNQ-20700 P8 | 112 | 1/2-20 UNF | 20 | 15 | 9000 | 700 |
| ARS-HJHNQ-20900 P8 | 133 | 1/2-20 UNF | 20 | 15 | 10000 | 900 |
| ARS-HJHNQ-20600 P8 | 121 | M18×1.5 | 20 | 15 | 6000 | 600 |
| ARS-HJHNQ-30500 P8 | 77 | M10×1.5 | 30 | 5 | 5500 | 500 |
| ARS-HJHNQ-28200 P4 | 92.1 | M10×1 | 28 | 20 | 3000 | 200 |
| ARS-HJHNQ-28100 P8 | 91 | M8×1 | 28 | 25 | 2200 | 100 |
| ARS-HJHNQ-28250 P8 | 94 | 1/2-20 UNF | 28 | 20 | 4000 | 250 |
| ARS-HJHNQ-202000 P8 | 128 | 1/2-20 UNF | 20 | 10 | 20000 | 2000 |
| ARS-HJHNQ-201500 P8 | 124 | 1/2-20 UNF | 20 | 10 | 16000 | 1500 |
| ARS-HJHNQ-201300 P8 | 128 | 1/2-20 UNF | 20 | 10 | 12500 | 1300 |
| ARS-HJHNQ-201500 P8 | 132 | 1/2-20 UNF | 20 | 10 | 11000 | 1500 |
| ARS-HJHNQ-20900 P8 | 123 | 1/2-20 UNF | 20 | 10 | 9500 | 900 |
| ARS-HJHNQ-152000 P4 | 171 | M18×1.5 | 15 | 12 | 10000 | 2000 |
| ARS-HJHNQ-35100 P8 | 71 | M8×1 | 35 | 25 | 2200 | 100 |
| ARS-HJHNQ-38100 P8 | 66 | M8×1.25 | 38 | 40 | 1200 | 100 |
| ARS-HJHNQ-38200 P4 | 65 | M8×1 | 38 | 14 | 3300 | 200 |
2000W ultrasonic aluminum welding transducer 20khz aluminum alloy ultrasonic welding transducer for welding machine
