Small Power Ultrasonic PCB Generator 200W 300W 500W Washer Machine Application

Name: Small Power Ultrasonic PCB Generator 200W 300W 500W Washer Machine Application
Brand: OURS ULTRASONIC
Price: 25 USD

Brand Name : OURS ULTRASONIC

Model Number : ARS-DLB600

Certification : CE and FCC

Place of Origin : shenzhen china

MOQ : 1set

Price : USD25-USD220

Payment Terms : T/T, Western Union PAYPAL

Supply Ability : 10000

Delivery Time : 1-5days

Packaging Details : Carton box or plywood box

Power : 600W

fre : 20-40KHZ

function : adjustable frequency

Voltage : 110V or 220V

application : cleaning generator

Contact Now

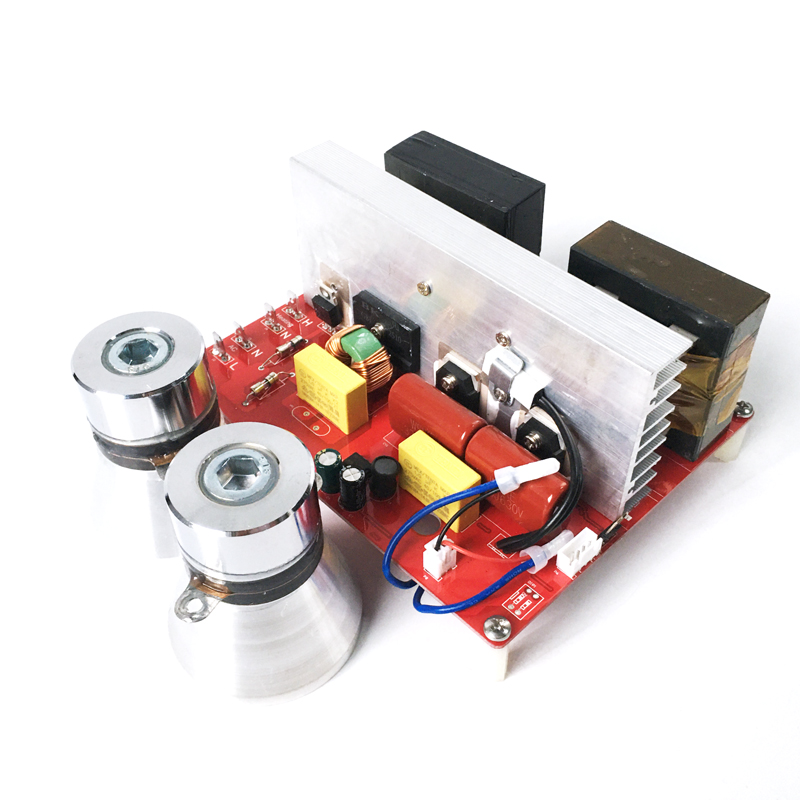

200W/300W/500W Small Power Ultrasonic PCB Generator for ultrasonic washer machine

The working voltage of ultrasonic PCB generator is AC220 ± 10V. With over-voltage, over-current, output short circuit and other protection measures. The 220 V ultrasonic circuit board has the function of frequency fine adjustment and automatic frequency tracking. The ultrasonic PCB generator can achieve the best effect under different working conditions.

Type	Frequency	Power	Dimension (mm)	Transducer numbers
ARS-DLB50W	25khz,28khz,33khz,40khz	50W	132×85×45mm	1 piece
ARS-DLB60W	25khz,28khz,33khz,40khz	60W	132×85×45mm	1 piece
ARS-DLB100W	25khz,28khz,33khz,40khz	100W	132×85×45mm	1-2 pieces
ARS-DLB120W	25khz,28khz,33khz,40khz	120W	132×85×45mm	1-2 pieces
ARS-DLB150W	25khz,28khz,33khz,40khz	150W	132×85×45mm	1-3 pieces
ARS-DLB200W	25khz,28khz,33khz,40khz,80khz,100khz,135khz	200W	180×130×60mm	4 pieces
ARS-DLB300W	25khz,28khz,33khz,40khz	300W	180×130×60mm	6 pieces
ARS-DLB400W	25khz,28khz,33khz,40khz	400W	180×130×60mm	8 pieces
ARS-DLB500W	25khz,28khz,33khz,40khz	500W	180×130×60mm	10 pieces
ARS-DLB600W	25khz,28khz,33khz,40khz	600W	180×130×60mm	12 pieces

Small Power Ultrasonic PCB Generator 200W 300W 500W Washer Machine Application

200W/300W/500W Small Power Ultrasonic PCB Generator for ultrasonic washer machine
