Factory Supply 28khz Ultrasonic Cleaning Circuit Board Frequency With Power Adjustable

Product Categories
Ours ultrasonic Co.,Ltd
Contact Now

Factory Supply 28khz Ultrasonic Cleaning Circuit Board Frequency With Power Adjustable

  • 1
  • 2

Brand Name : OURS ULTRASONIC

Model Number : ARS-DLB600

Certification : CE and FCC

Place of Origin : shenzhen china

MOQ : 1set

Price : USD25-USD220

Payment Terms : T/T, Western Union PAYPAL

Supply Ability : 10000

Delivery Time : 1-5days

Packaging Details : Carton box or plywood box

Power : 600W

fre : 20-40KHZ

function : adjustable frequency

Voltage : 110V or 220V

application : cleaning generator

Contact Now

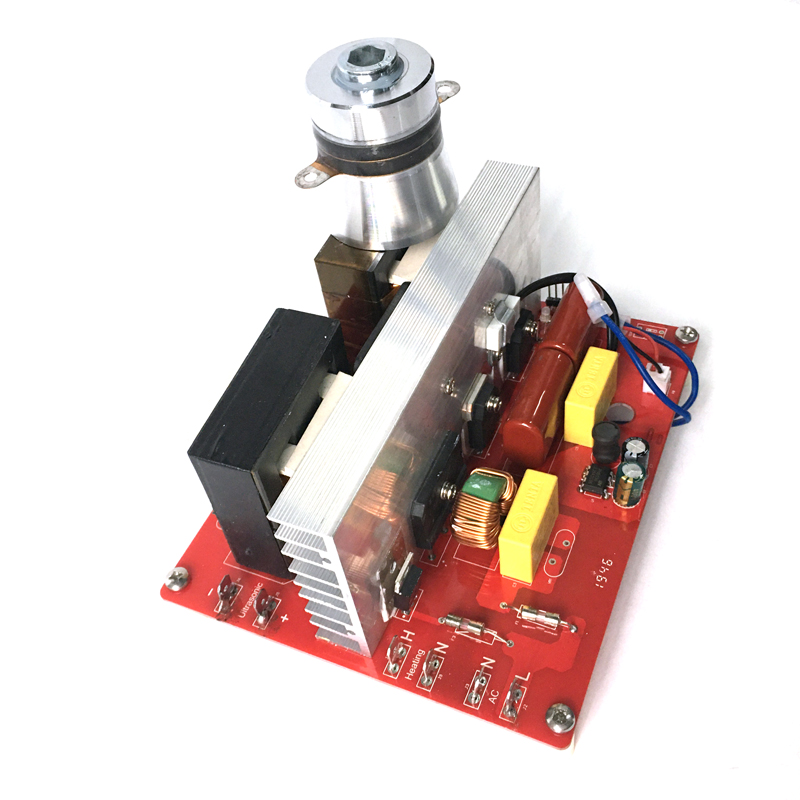

Factory supply 28khz Ultrasonic cleaning circuit board frequency with power adjustable

Ultrasonic PCB generator:
1. Sweep function: Advanced sweep circuit in the international market, effectively protecting the shock board;
2. The power output components IGBT are all imported devices, which have the advantages of small size, high power and fast response;
3. Power tube: imported 50A / 1200V inlet tube is used to eliminate the possibility of tube burning;
4. The unique sealing and anti-corrosion technology ensures the long-term stable and reliable operation of the internal circuit board;
5. The output power of the new control circuit is more than 98%, which greatly improves the cavitation density;
6. The output current is sine wave, which can prolong the service life of transducer and generator;
7. Wide range sweep frequency: 20khz-40khz adjustable, suitable for various transducers;
8. Constant output design, small output current ripple, more stable output, protect the transducer from damage;
9. Output over-current and short-circuit protection can protect generator power tube.

Type Frequency Power Dimension
(mm)		 Transducer numbers
ARS-DLB50W 25khz,28khz,33khz,40khz 50W 132×85×45mm 1 piece
ARS-DLB60W 25khz,28khz,33khz,40khz 60W 132×85×45mm 1 piece
ARS-DLB100W 25khz,28khz,33khz,40khz 100W 132×85×45mm 1-2 pieces
ARS-DLB120W 25khz,28khz,33khz,40khz 120W 132×85×45mm 1-2 pieces
ARS-DLB150W 25khz,28khz,33khz,40khz 150W 132×85×45mm 1-3 pieces
ARS-DLB200W 25khz,28khz,33khz,40khz,80khz,100khz,135khz 200W 180×130×60mm 4 pieces
ARS-DLB300W 25khz,28khz,33khz,40khz 300W 180×130×60mm 6 pieces
ARS-DLB400W 25khz,28khz,33khz,40khz 400W 180×130×60mm 8 pieces
ARS-DLB500W 25khz,28khz,33khz,40khz 500W 180×130×60mm 10 pieces
ARS-DLB600W 25khz,28khz,33khz,40khz 600W 180×130×60mm 12 pieces

Factory Supply 28khz Ultrasonic Cleaning Circuit Board Frequency With Power Adjustable

Factory supply 28khz Ultrasonic cleaning circuit board frequency with power adjustable
