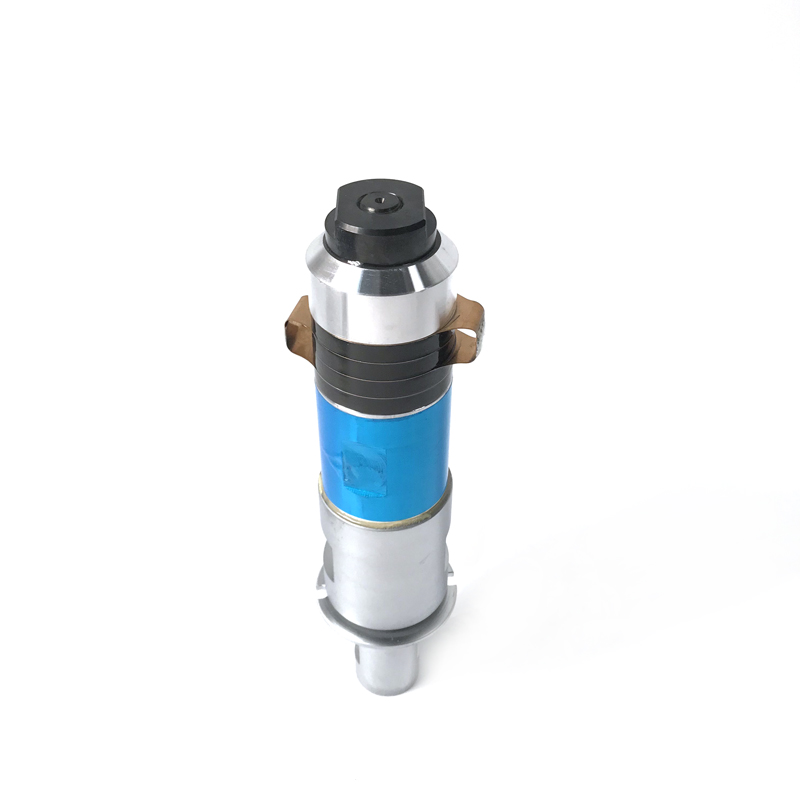

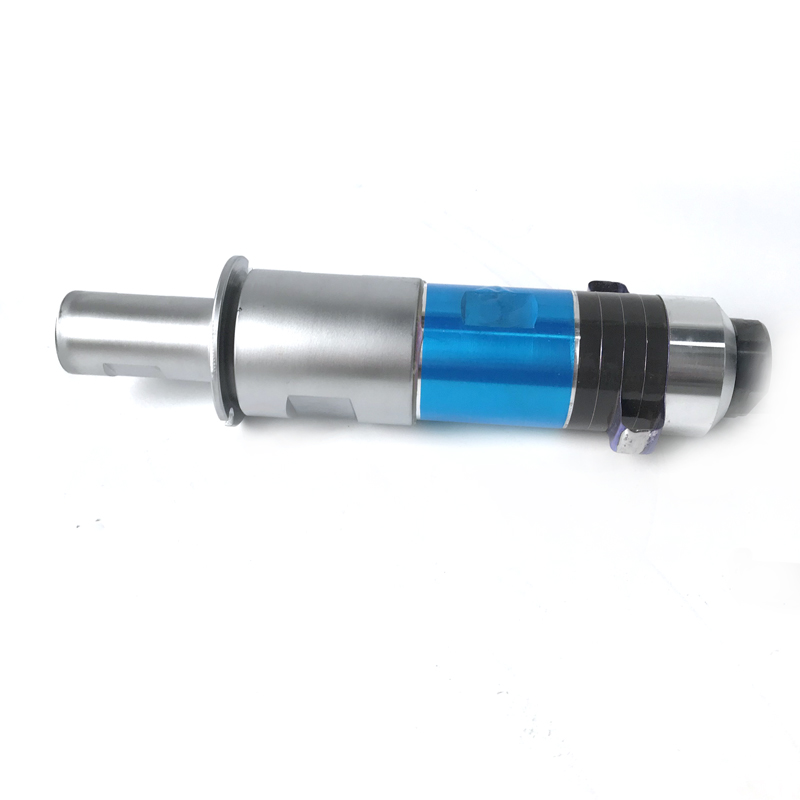

20khz 2000W ultrasonic Metal welding transducer and booster for Wire harness welding

  • 1
  • 2

Brand Name : OURS Ultrasonic

Model Number : ARS-HJHNQ201500

Certification : CE and FCC

Place of Origin : Shenzhen,China

MOQ : 1set

Price : USD150-USD160

Payment Terms : T/T, Western Union,PAYPAL

Supply Ability : 100000pcs

Delivery Time : within 5 days

Packaging Details : export carton

frequency : 15-40khz

power : 100W-4200W

Output : Switching Transducer

Usage : Vibration Sensor

Application : Plastic Ultrasonic Welding Transducer

type : 1500w ultrasonic welding transducer

Contact Now

20khz 2000W ultrasonic Metal welding transducer and booster for Wire harness welding

Composition of ultrasonic transducer:
1. Middle piezoelectric ceramic element 2. Front and rear metal cover plate 3. Prestressed screw 4. Electrode plate 5. Insulating pipe
This kind of sandwich transducer produces stable ultrasonic wave when the load changes, which is the basic and main method to obtain the power ultrasonic driving source.
According to different design forms of ultrasonic transducer, there are mainly:
1. Column type 2. Inverted horn type 3. Steel rear cover type 4. Aluminum plate type sandwiched in the middle
Mainly applicable to ultrasonic plastic welding machine, ultrasonic plastic welding, ultrasonic metal welding machine, ultrasonic cleaning machine, ultrasonic sonochemical equipment, etc

Type Full-length(mm) Joint Bolt(mm) Frequency(KHz) Resonance Impedance(Ω) Capacity(pF) Input Power
(W)
ARS-HJHNQ-152500 P8 153 M20×1.5 15 15 13000 2500
ARS-HJHNQ-152000 P8 167 M20×1.5 15 10 9500 2000
ARS-HJHNQ-151500 P4 171 M18×1.5 15 12 12500 1500
ARS-HJHNQ-151800 P4 118 M20×1.5 20 15 15000 1800
ARS-HJHNQ-202000 P8 128 M18×1 20 10 11000 2000
ARS-HJHNQ-202000 P8 124 M18×1.5 20 12 10000 1500
ARS-HJHNQ-20700 P8 112 1/2-20 UNF 20 15 9000 700
ARS-HJHNQ-20900 P8 133 1/2-20 UNF 20 15 10000 900
ARS-HJHNQ-20600 P8 121 M18×1.5 20 15 6000 600
ARS-HJHNQ-30500 P8 77 M10×1.5 30 5 5500 500
ARS-HJHNQ-28200 P4 92.1 M10×1 28 20 3000 200
ARS-HJHNQ-28100 P8 91 M8×1 28 25 2200 100
ARS-HJHNQ-28250 P8 94 1/2-20 UNF 28 20 4000 250
ARS-HJHNQ-202000 P8 128 1/2-20 UNF 20 10 20000 2000
ARS-HJHNQ-201500 P8 124 1/2-20 UNF 20 10 16000 1500
ARS-HJHNQ-201300 P8 128 1/2-20 UNF 20 10 12500 1300
ARS-HJHNQ-201500 P8 132 1/2-20 UNF 20 10 11000 1500
ARS-HJHNQ-20900 P8 123 1/2-20 UNF 20 10 9500 900
ARS-HJHNQ-152000 P4 171 M18×1.5 15 12 10000 2000
ARS-HJHNQ-35100 P8 71 M8×1 35 25 2200 100
ARS-HJHNQ-38100 P8 66 M8×1.25 38 40 1200 100
ARS-HJHNQ-38200 P4 65 M8×1 38 14 3300 200
