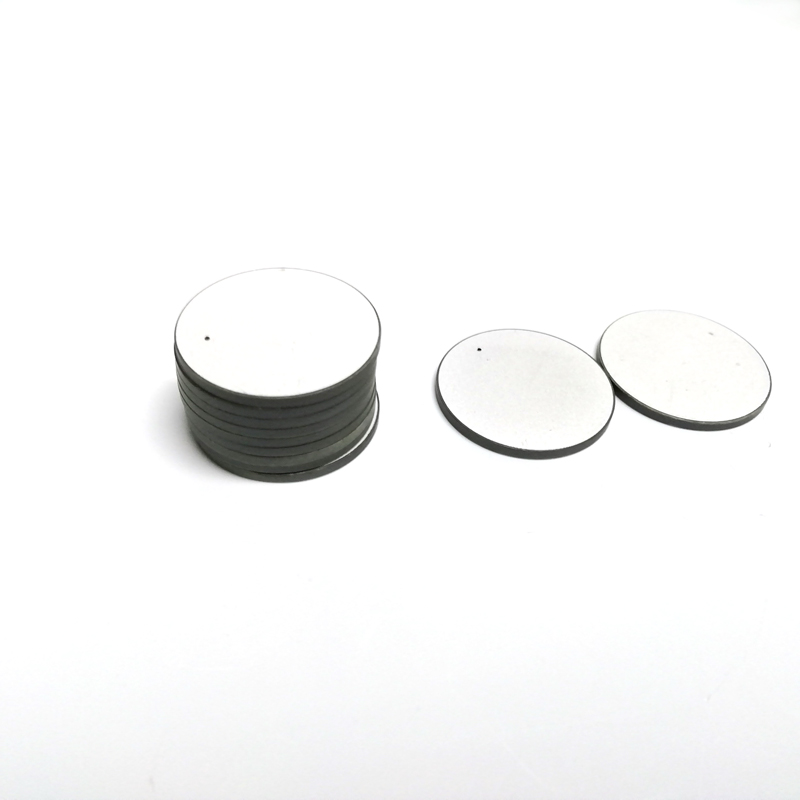

12mm Piezo Ceramic 1 Mhz Piezoelectric Disk pzt-4/pzt-8 material
Piezoelectric ceramics, also known as energy exchange sheet, is an indispensable part of modern electronic technology. Piezoelectric ceramics are widely used in modern communication, radar, sonar, automatic measurement and control, ultrasonic energy exchange, ignition, ultrasonic sterilization, ultrasonic power and other aspects. At present, the development of piezoelectric ceramic materials and their applications in China is still in the development stage, and the development of this industry will have a broad prospect.
Performance features:
High power transmitting material yt-8 piezoelectric ceramic
The piezoelectric ceramic material has good piezoelectricity, high mechanical strength, high coercive field and low dielectric loss. It is mainly used for ultrasonic cleaning, strong ultrasonic drilling, ultrasonic welding, dental cleaner probe, beauty instrument probe, ultrasonic scalpel probe, cardiovascular therapeutic instrument probe, etc.
| spec | Dimension
(mm) | Radial frequency
(KHz) | Capacitance
(±12.5%)pF | Dielectric dissipation factor
tanδ(%) | Impedance
(Ω) | Kr | Mechanical
quality factor
(Qm) |
| ARS-QXJP-3030 | Φ30×3.0 | 66.7 | 2730 | ≤0.3 | ≤15 | ≥0.55 | 500 |
| ARS-QXJP-3530 | Φ35×3.0 | 63.0 | 3100 | ≤0.3 | ≤15 | ≥0.55 | 500 |
| ARS-QXJP-3865 | Φ38×6.5 | 59.9 | 1580 | ≤0.3 | ≤15 | ≥0.55 | 500 |
| ARS-QXJP-4530 | Φ45×3.0 | 50.0 | 5100 | ≤0.3 | ≤15 | ≥0.55 | 500 |
| ARS-QXJP-4535 | Φ45×3.5 | 50.0 | 4700 | ≤0.3 | ≤15 | ≥0.55 | 500 |
| ARS-QXJP-5030 | Φ50×3.0 | 46.0 | 5800 | ≤0.3 | ≤15 | ≥0.55 | 500 |
| ARS-QXJP-5035 | Φ50×3.5 | 46.0 | 6300 | ≤0.3 | ≤15 | ≥0.55 | 500 |
| ARS-QXJP-5050 | Φ50×5.0 | 46.0 | 4150 | ≤0.3 | ≤15 | ≥0.55 | 500 |
12mm Piezo Ceramic 1 Mhz Piezoelectric Disk pzt-4/pzt-8 material
