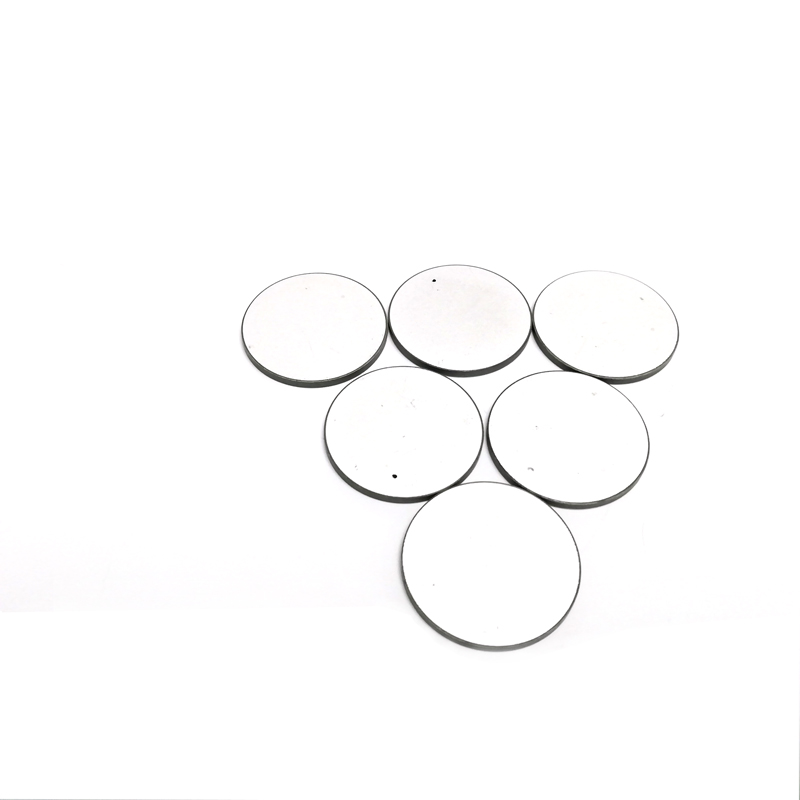

Barium Titanate Piezoelectric Ceramic Disc PZT-4 For 42KHz Ultrasonic Cleaner

Name: Barium Titanate Piezoelectric Ceramic Disc PZT4 For 42KHz Ultrasonic Cleaner
Brand: OURS Ultrasonic
Price: 3 USD

Brand Name : OURS Ultrasonic

Model Number : ARS-TYJP

Certification : CE AND FCC

Place of Origin : Shenzhen,China

MOQ : 100pcs

Price : USD3-USD30

Payment Terms : T/T, Western Union,PAYPAL

Supply Ability : 1000000pcs

Delivery Time : 2-3 days

Packaging Details : Carton box or plywood box

material : barium titanate

Pric : based on quantity

Material : Zirconium Oxide

OEM : yes

certificate : ISO90001

model : Piezoelectric Ceramic Materials

Contact Now

PZT-4 Material Piezoelectric Ceramic Disc For 42KHz Ultrasonic Cleaner

Piezoelectric ceramic ultrasonic transducer is suitable for ultrasonic welding equipment and ultrasonic cleaning equipment. It is mainly made of high-power transmitting piezoelectric ceramic. Ultrasonic transducer is a device that can convert high-frequency electric energy into mechanical energy. As an energy conversion device, ultrasonic transducer is used to convert the input electric power into mechanical power (i.e. ultrasonic) for retransmission Pass it out, and it consumes a small part of its own power.

spec	Dimension (mm)	Radial frequency (KHz)	Capacitance (±12.5%)pF	Dielectric dissipation factor tanδ(%)	Impedance (Ω)	Kr	Mechanical quality factor (Qm)
ARS-QXJP-3030	Φ30×3.0	66.7	2730	≤0.3	≤15	≥0.55	500
ARS-QXJP-3530	Φ35×3.0	63.0	3100	≤0.3	≤15	≥0.55	500
ARS-QXJP-3865	Φ38×6.5	59.9	1580	≤0.3	≤15	≥0.55	500
ARS-QXJP-4530	Φ45×3.0	50.0	5100	≤0.3	≤15	≥0.55	500
ARS-QXJP-4535	Φ45×3.5	50.0	4700	≤0.3	≤15	≥0.55	500
ARS-QXJP-5030	Φ50×3.0	46.0	5800	≤0.3	≤15	≥0.55	500
ARS-QXJP-5035	Φ50×3.5	46.0	6300	≤0.3	≤15	≥0.55	500
ARS-QXJP-5050	Φ50×5.0	46.0	4150	≤0.3	≤15	≥0.55	500

Barium Titanate Piezoelectric Ceramic Disc PZT-4 For 42KHz Ultrasonic Cleaner

PZT-4 Material Piezoelectric Ceramic Disc For 42KHz Ultrasonic Cleaner
