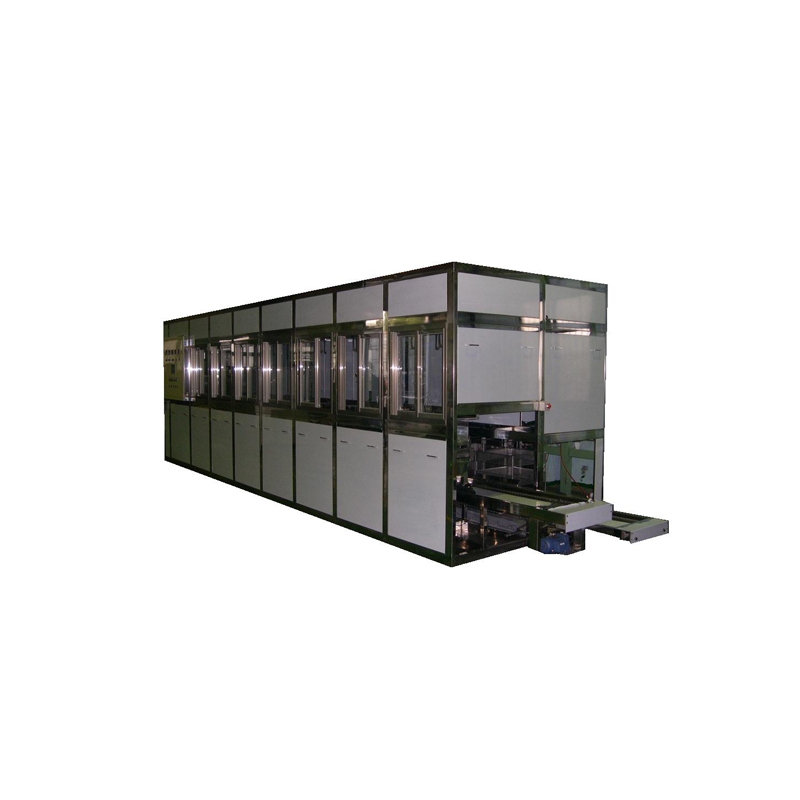

multi-function Temperature control automatic high pressure ultrasonic cleaner with dryer
This machine is used to clean quartz chips, clamps, silicon chips, sapphire chips, optical chips and other devices, circular structure design, full-automatic process, using touch-screen PLC control, simple operation, can save a lot of manpower, save costs, bring considerable effect to the enterprise.
Main features:
Adopt imported components, such as Mitsubishi, Delta, Siemens and other international brands
Main functions: ultrasonic cleaning, heating, circulation filtration, frequency conversion and speed regulation, etc
Ultrasonic frequency adopts various frequencies: such as 28kHz, 40KHz, 150kHz
All stainless steel design, beautiful appearance, convenient operation.
The size of the cleaning tank can be determined according to the user's requirements.
| Type | Internal size
L*W*H (mm) | Outsize mm
L*W*H (mm) | Frequency (Khz) | Power
(W) | Heating
(W) | Total power(W) | voltage |
| ARS-DQXJ-1006 | 280×210×210 | 320×250×350 | 20,28,33,40,80,130 | 300 | 1000 | 1300 | 220V |
| ARS-DQXJ-1012 | 400×310×280 | 520×430×600 | 20,28,33,40,80,130 | 600 | 3000 | 3600 | 220V |
| ARS-DQXJ-1018 | 490×360×320 | 610×480×675 | 20,28,33,40,80,130 | 900 | 3000 | 3900 | 220V |
| ARS-DQXJ-1024 | 630×430×320 | 740×550×675 | 20,28,33,40,80,130 | 1200 | 4000 | 5200 | 220V |
| ARS-DQXJ-1030 | 630×530×320 | 750×650×675 | 20,28,33,40,80,130 | 1500 | 4000 | 5500 | 220V |
| ARS-DQXJ-1036 | 680×530×360 | 800×650×700 | 20,28,33,40,80,130 | 1800 | 5000 | 6800 | 220V |
| ARS-DQXJ-1040 | 680×570×400 | 830×710×735 | 20,28,33,40,80,130 | 2000 | 5000 | 7000 | 220V |
| ARS-DQXJ-1041 | 730×570×450 | 880×710×735 | 20,28,33,40,80,130 | 2400 | 6000 | 8400 | 220V |
| ARS-DQXJ-1042 | 790×670×510 | 940×765×785 | 20,28,33,40,80,130 | 3000 | 6000 | 9000 | 380V |
| ARS-DQXJ-1043 | 850×770×570 | 990×820×785 | 20,28,33,40,80,130 | 4000 | 7000 | 11000 | 380V |
| ARS-DQXJ-1044 | 910×820×620 | 1050×880×840 | 20,28,33,40,80,130 | 5000 | 7000 | 12000 | 380V |
| ARS-DQXJ-1045 | 960×870×680 | 1100×940×920 | 20,28,33,40,80,130 | 8000 | 8000 | 16000 | 380V |
| ARS-DQXJ-1046 | 1100×930×730 | 1160×1000×980 | 20,28,33,40,80,130 | 10000 | 8000 | 18000 | 380V |
multi-function Temperature control automatic high pressure ultrasonic cleaner with dryer
