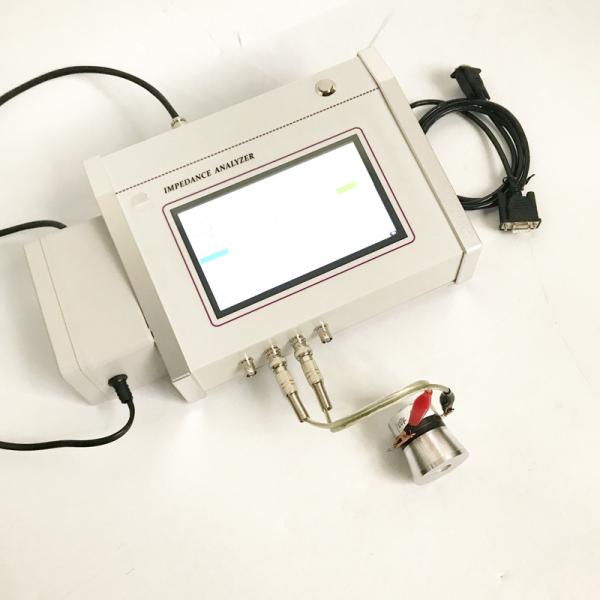

1khz-5mhz Ultrasonic Impedance Analysis Of Ultrasonic Welding Transducer / Horn

1khz-5mhz ultrasonic Impedance analysis of ultrasonic welding transducer and horn

Product specification of ultrasonic frequency measuring instrument
1. Frequency range: 1kHz ～ 5MHz;
2. Measurement index: all parameters and figures;
3. Measurement accuracy: 99.9%;
4. Measuring speed: 2 seconds / piece;
5. Frequency accuracy: ± 5-10ppm;
6. Phase resolution: 0.15 degrees;
7. Ambient temperature: 5-60 ℃;
8. Impedance range: 0.2 Ω ～ 1m Ω;
9. Frequency step: 0.1Hz ~ any;

Frequency range: 1kHz ～ 5MHz dynamic impedance R1
Measurement index all parameters, figure dynamic capacitance C1
Measurement accuracy: 99.9% dynamic inductance L1
Measuring speed: 2S / piece free capacitance CT
Frequency accuracy ± 5-10ppm free dielectric constant
Phase resolution: 0.15 degrees, mechanical quality factors of transducer, tool head and horn (QM)
Environmental temperature: 5-60 ℃; electromechanical coupling coefficient: keff
Impedance range 0.2 Ω ～ 1m Ω plane electromechanical coupling coefficient Kp
Frequency step 0.1Hz ~ any half power point F1 and F2

Application fields: power ultrasonic equipment, piezoelectric ceramic production inspection, ultrasonic welding, ultrasonic cleaning, medical ultrasound, etc. maximum admittance Gmax
Maximum impedance Zmax
Minimum impedance Zmin

1khz-5mhz ultrasonic Impedance analysis of ultrasonic welding transducer and horn

piezoelectric ceramic ring

piezoelectric ceramic element
