Array Immersible Ultrasonic Transducer Industry Stainless Steel With Generator 40khz

Product Categories
Ours ultrasonic Co.,Ltd
Contact Now

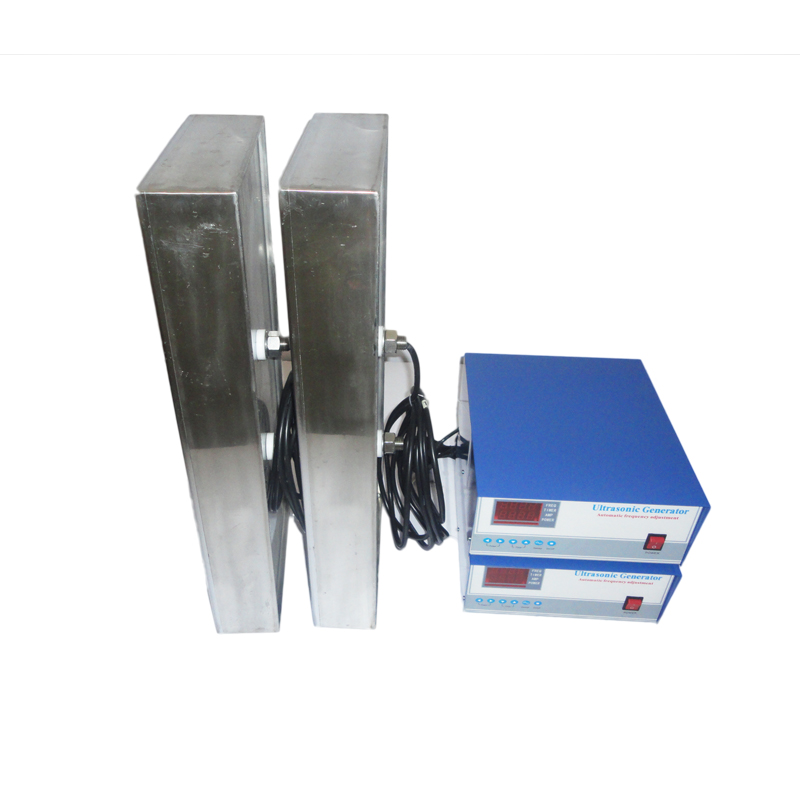

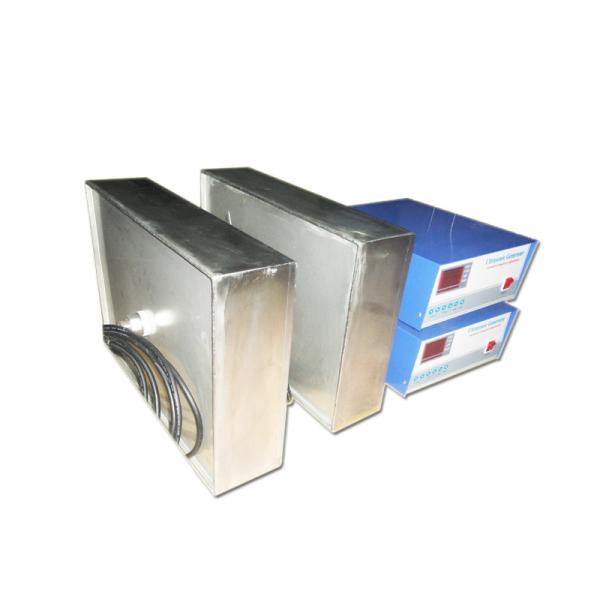

Array Immersible Ultrasonic Transducer Industry Stainless Steel With Generator 40khz

Brand Name : OURS

Model Number : ARS-ZBH2000W

Certification : CE AND FCC

Place of Origin : shenzhen china

MOQ : 1set

Price : USD1100/SET-USD1390/SET

Payment Terms : T/T, Western Union, PAYPAL

Delivery Time : 3-5 days

Packaging Details : Carton box or plywood box

Diamention : 650*450*100mm

Ultrasonic Transducer : 40 pcs

Frequency : 25khz,28khz,33khz,40khz,80khz,130khz

Machine Material : Stainless Steel SUS 304L / SUS 316L

Size : customer designed

Condition : New

Customized : Acceptable

Contact Now

Custom Ultrasonic Immersion Array Transducer with generator for industry 40khz

product mix
1: all stainless steel structure, acid and alkali resistant, beautiful and durable.
2: split structure is adopted, high frequency connection with socket is adopted between vibration plate and ultrasonic generator, which is convenient for use and maintenance.
3: the installation layout is flexible, which can be made into base shock type, side shock type and top shock type according to different needs to adapt to different cleaning requirements.
4: advantages of ultrasonic vibration plate, convenient for maintenance
5: when the power of the trough type ultrasonic cleaner is too small, the input type vibrating plate device can be used. For example, a vibrating plate device is added to the existing cleaning tank, which is refitted into an ultrasonic cleaning machine It's also a low-cost way.

Type Diamention(mm) Frequency (Khz) Power(W) Ultrasonic Transducer
ARS-ZBH300W 300*190*100 25,28,33,40,80,130 300 6
ARS-ZBH600W 360*275*100 25,28,33,40,80,130 600 12
ARS-ZBH1000W 450*350*100 25,28,33,40,80,130 1000 20
ARS-ZBH1200W 470*380*100 25,28,33,40,80,130 1200 24
ARS-ZBH1500W 520*450*100 25,28,33,40,80,130 1500 30
ARS-ZBH1800W 560*450*100 25,28,33,40,80,130 1800 36
ARS-ZBH2000W 650*450*100 25,28,33,40,80,130 2000 40
ARS-ZBH2400W 740*520*100 25,28,33,40,80,130 2400 48
ARS-ZBH3000W 820*540*100 25,28,33,40,80,130 3000 60
ARS-ZBH5000W 1200*590*100 25,28,33,40,80,130 5000 100
Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power)

Array Immersible Ultrasonic Transducer Industry Stainless Steel With Generator 40khz

Custom Ultrasonic Immersion Array Transducer with generator for industry 40khz
