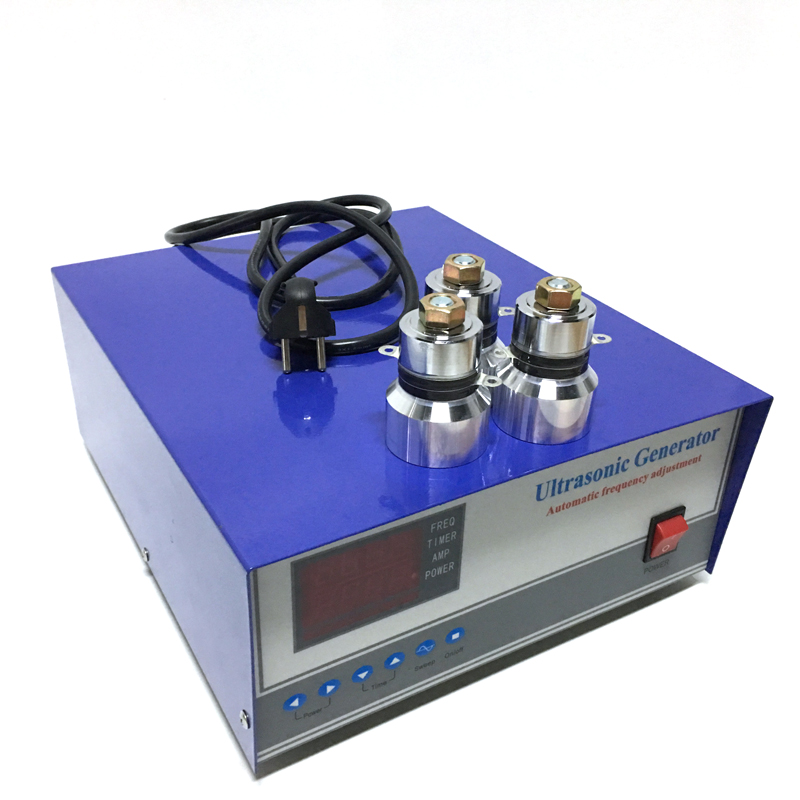

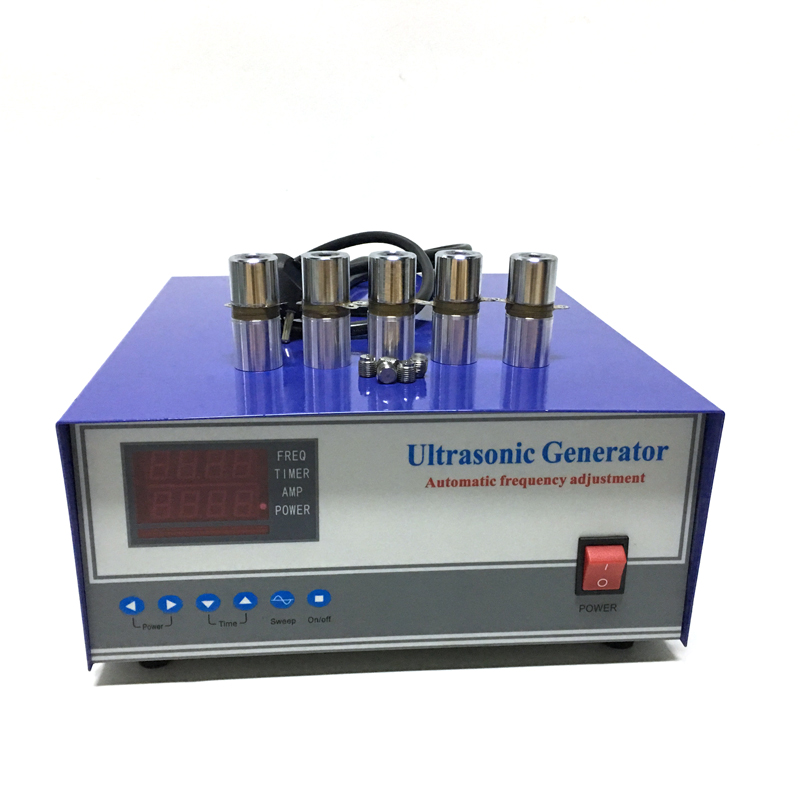

ultrasonic generator power control box 1000W/2000W/3000W for cleaning machine equipment
Main functions:
(1) adjustable output power: the starting point of the output power is 20%, and the following eight levels are adjustable. Green LEDs correspond to 30%, 40%, 50%, 60%, 70%, 80%, 90% and 100% respectively.
(2) frequency sweep: it can make the output power strong, uniform and stable.
(3) alarm: over current, over temperature protection, output under load alarm, output open circuit alarm.
(4) remote control: provide remote fault display of four position terminal and switch control.
Application field of ultrasonic cleaning:
(1) manufacturing industry: precision cleaning, dedusting, degreasing and dewaxing, used for precision stamping parts cleaning; precision gear and bearing manufacturing, various metal and plastic workpiece electroplating pretreatment, etc.
(2) semiconductor industry: precision cleaning of photovoltaic silicon wafer, silicon wafer, liquid crystal glass, hard disk and magnetic head; decontamination and cleaning of electronic connectors, PCB and SMT, etc.
(3) optical industry: optical glass, camera parts, lens dedusting and wax removal, high magnification microscope, radio telescope precision parts and assembly cleaning, etc.
(4) automobile industry: automobile instrument manufacturing, bearing manufacturing, engine, steering gear, transmission, brake assembly manufacturing, etc.
(5) medical and pharmaceutical industry: cleaning of surgical instruments, micro display surgery, ophthalmic eyepieces and dental appliances in hospitals; cleaning of reaction kettles, utensils and packaging robots in pharmaceutical factories.
(6) Laboratory of Scientific Research Institute: various purification instruments, fine sensors and instrument components in Scientific Research Institute; cleaning of various test tubes, straws and glass devices in laboratory; comminution, chemical reaction, catalytic reaction and quenching of various materials.
(7) civil Jewelry: the cleaning of gold and silver jewelry products, precious gemstone pendants, watches and glasses.
| Type | Power(W) | Frequency (KHz) | Transducer numbers | Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system |
| ARS-QXDY-300W | 300W | 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable | 3-6 | 300x360x150 |
| ARS-QXDY-600W | 600W | 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable | 6-12 | 300x360x150 |
| ARS-QXDY-900W | 900W | 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable | 9-18 | 300x360x150 |
| ARS-QXDY-1000W | 1000W | 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable | 10-20 | 300x360x150 |
| ARS-QXDY-1200W | 1200W | 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable | 12-24 | 300x360x150 |
| ARS-QXDY-1500W | 1500W | 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable | 15-30 | 300x360x150 |
| ARS-QXDY-1800W | 1800W | 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable | 18-36 | 300x360x150 |
| ARS-QXDY-2000W | 2000W | 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable | 20-40 | 300x360x150 |
| ARS-QXDY-2400W | 2400W | 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable | 24-48 | 300x360x150 |
| ARS-QXDY-3000W | 3000W | 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable | 50-60 | 300x360x150 |
| High Frequency | 300W-1200W | 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ |
| High Frequency | 100W-300W | 175-200KHZ |
| Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request |
