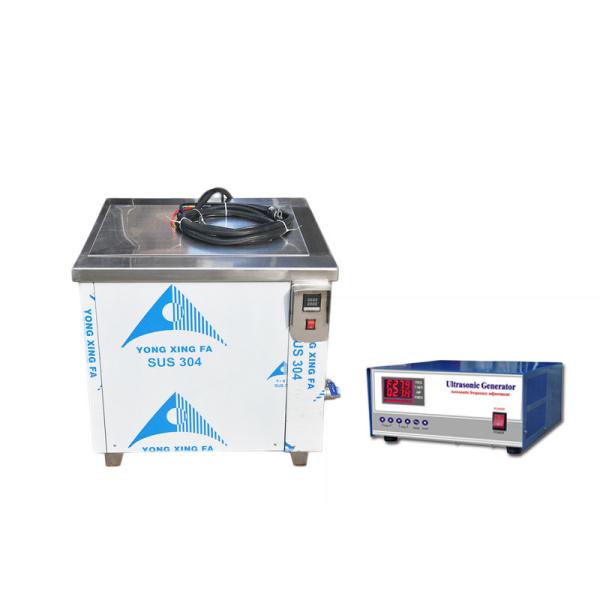

Digital Ultrasonic Cleaner Mold Metal Car Parts Machine Motherboard Equipment
1. Use pure water with good quality
If you want the ultrasonic cleaning machine to achieve better cleaning effect, you should pay attention to whether the external purified water can reach the required purity. Because the ultrasonic cleaning machine has certain requirements for conductivity and resistance during operation, and the conductivity and resistance will be different when the purity of water is different, so in order to improve the cleanliness of cleaning, you should pay attention to the purity used in the cleaning machine. Water quality is good.
3. Use of detergent dosage
Generally, the liquid level of cleaning fluid is more than one meter higher than the surface of vibrator. Due to the influence of standing wave field, the amplitude at the wave node is very small and the amplitude at the wave amplitude is large, so in order to avoid uneven cleaning, we should pay attention to the use of appropriate dosage of cleaning fluid, and place the cleaning items at the wave amplitude, so that the cleaning effect will be better.
4. How to set the frequency of ultrasonic cleaner
Ultrasonic cleaning machine cleaning workpiece is to make the cleaning fluid produce cavitation effect through the frequency of ultrasonic, so as to accelerate the dissolution and stripping of dust, grease and other dirt on the cleaned workpiece, so choosing the appropriate ultrasonic frequency can also improve the cleaning effect. For example, when using water or water cleaning agent, the physical cleaning force caused by cavitation needs to use low-frequency ultrasonic; the high-frequency ultrasonic cleaning effect is better for parts with small clearance, slit and deep hole.
Ultrasonic cleaning function is widely used in industry. The main reason is that it can clean quickly, massively and effectively, and it can clean the holes, textures, gaps and so on which are difficult to clean. If you have such a need, you may as well try it.
| Type |
Internal size
L*W*H (mm) |
Outsize mm
L*W*H (mm) |
Frequency (Khz) |
Power
(W)
|
Heating
(W)
|
Total power(W) |
voltage |
| ARS-DQXJ-1006 |
280×210×210 |
320×250×350 |
20,28,33,40,80,130 |
300 |
1000 |
1300 |
220V |
| ARS-DQXJ-1012 |
400×310×280 |
520×430×600 |
20,28,33,40,80,130 |
600 |
3000 |
3600 |
220V |
| ARS-DQXJ-1018 |
490×360×320 |
610×480×675 |
20,28,33,40,80,130 |
900 |
3000 |
3900 |
220V |
| ARS-DQXJ-1024 |
630×430×320 |
740×550×675 |
20,28,33,40,80,130 |
1200 |
4000 |
5200 |
220V |
| ARS-DQXJ-1030 |
630×530×320 |
750×650×675 |
20,28,33,40,80,130 |
1500 |
4000 |
5500 |
220V |
| ARS-DQXJ-1036 |
680×530×360 |
800×650×700 |
20,28,33,40,80,130 |
1800 |
5000 |
6800 |
220V |
| ARS-DQXJ-1040 |
680×570×400 |
830×710×735 |
20,28,33,40,80,130 |
2000 |
5000 |
7000 |
220V |
| ARS-DQXJ-1041 |
730×570×450 |
880×710×735 |
20,28,33,40,80,130 |
2400 |
6000 |
8400 |
220V |
| ARS-DQXJ-1042 |
790×670×510 |
940×765×785 |
20,28,33,40,80,130 |
3000 |
6000 |
9000 |
380V |
| ARS-DQXJ-1043 |
850×770×570 |
990×820×785 |
20,28,33,40,80,130 |
4000 |
7000 |
11000 |
380V |
| ARS-DQXJ-1044 |
910×820×620 |
1050×880×840 |
20,28,33,40,80,130 |
5000 |
7000 |
12000 |
380V |
| ARS-DQXJ-1045 |
960×870×680 |
1100×940×920 |
20,28,33,40,80,130 |
8000 |
8000 |
16000 |
380V |
| ARS-DQXJ-1046 |
1100×930×730 |
1160×1000×980 |
20,28,33,40,80,130 |
10000 |
8000 |
18000 |
380V |
Digital Ultrasonic Cleaner Mold Metal Car Parts Machine Motherboard Equipment
