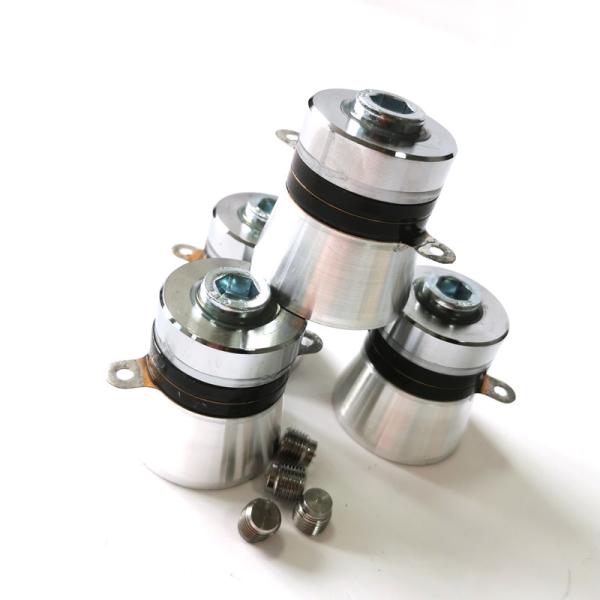

PZT-4 40khz 50W Langevin Piezoelectric Cleaning Transducer

Product Categories
Ours ultrasonic Co.,Ltd
Contact Now

PZT-4 40khz 50W Langevin Piezoelectric Cleaning Transducer

  • 1
  • 2

Brand Name : Ours

Model Number : ARS-QXHNQ13550 PZT-4

Certification : CE and FCC

Place of Origin : ShenZhen China

MOQ : 1PCS

Price : USD11/PCS-USD13/PCS

Payment Terms : T/T, Western Union, PAYPAL

Supply Ability : 1000000pcs

Delivery Time : 2-3 days

Packaging Details : Carton box or plywood box

Power : 50W

Frequency : 40khz ultrasonic transducer

Usage : Ultrasonic cleaning machine

Material : Stainless Steel

Size : 54*36*35mm

Weight : 215g

Piezoceramic : PZT-4 or PZT-8

Static Capacity : 4200(pF)±10%

Contact Now

40khz/50W Langevin Piezoelectric cleaning Transducer

Piezoelectric ultrasonic probe / transducer has the advantages of high power and high efficiency, which is an important part of ultrasonic application. It is widely used in cleaning, processing and other fields. Our company has many years of experience in power ultrasonic development, various research and development means and testing equipment, and can provide users with complete design scheme and prototype in a short time.

Characteristics of piezoelectric ultrasonic transducer:
1. High performance: high mechanical Q value, high conversion efficiency, excellent quality;
2. The ultrasonic vibrator transducer has large amplitude and excellent performance;
3. Heat resistance of ultrasonic vibrator transducer: piezoelectric ceramic material has good heat resistance, can expand the temperature range, high Q value, small resonance impedance and small calorific value;
4. The appearance of ultrasonic vibrator transducer is neat, without rust, obvious depression and scratch.

Type Length(mm) Weight(g) Frequency(KHz) Resonance Impedance
(Ω)		 Static Capacity
(pF)±10%		 Input Power(W)
ARS-QXHNQ-20100
PZT-8		 94 900 20 10-20 5200 100
ARS-QXHNQ-25100
PZT-4		 77 710 25 10-20 6600 100
ARS-QXHNQ-28100
PZT-8		 66 625 28 10-20 5200 100
ARS-QXHNQ-28100
PZT-4		 66 624 28 10-20 6600 100
ARS-QXHNQ-30100
PZT-8		 61 555 30 10-20 5200 100
ARS-QXHNQ-2560
PZT-4		 77 530 25 10-20 5400 60
ARS-QXHNQ-2860
PZT-8		 68 470 28 10-20 3800 60
ARS-QXHNQ-2850
PZT-4		 82 425 28 10-20 4100 50
ARS-QXHNQ-3360
PZT-8		 58 420 33 10-20 3800 60
ARS-QXHNQ-4060
PZT-8		 55 300 40 10-20 3800 60
ARS-QXHNQ-4060
PZT-4		 56 310 40 10-20 5400 60
ARS-QXHNQ-4050
PZT-4		 54 260 40 10-20 4100 50
ARS-QXHNQ-4050-1
PZT-4		 57 300 40 10-20 4100 50
ARS-QXHNQ-5435
PZT-4		 36 135 54 10-20 3200 35
ARS-QXHNQ-6860
PZT-8		 80 460 68 10-20 3800 60
ARS-QXHNQ-68120
PZT-4		 67 588 68 10-20 7800 120
ARS-QXHNQ-8060
PZT-4		 60 325 80 10-20 5400 60
ARS-QXHNQ-12060
PZT-4		 56 260 120 10-20 5400 60
ARS-QXHNQ-13550
PZT-4		 54 215 135 10-20 4200 50

PZT-4 40khz 50W Langevin Piezoelectric Cleaning Transducer

40khz/50W Langevin Piezoelectric cleaning Transducer
