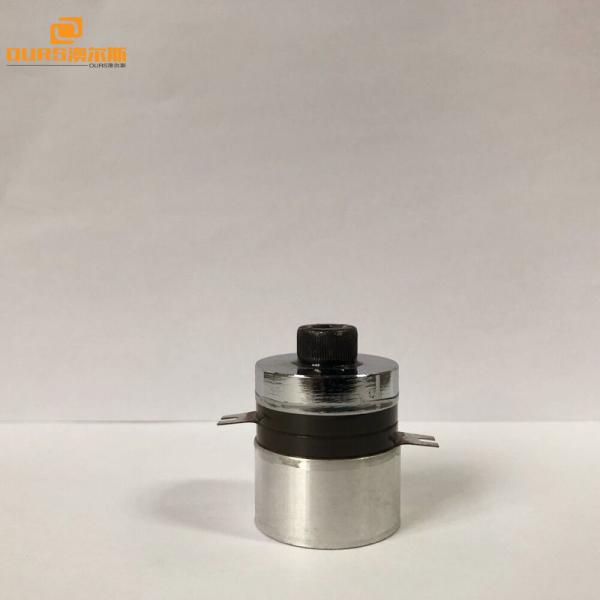

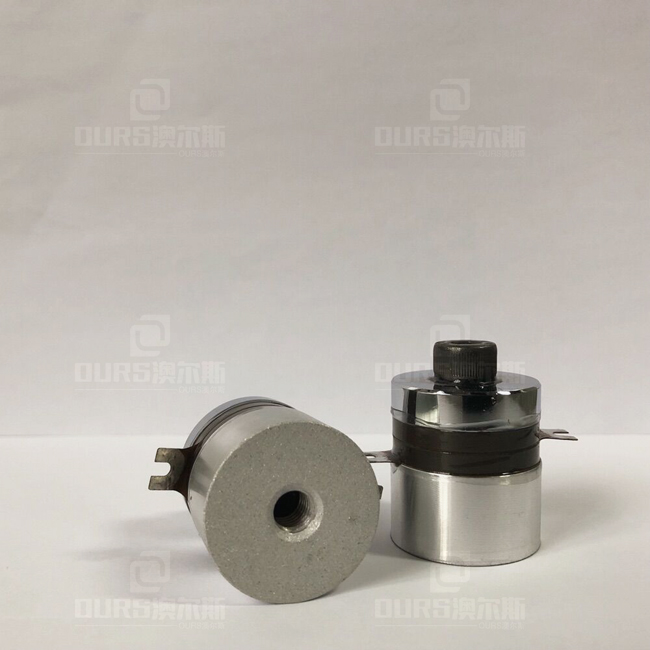

Piezoelectric Acceleration 54KHZ Ultrasonic Cleaning Transducer Waterproof Low Power
ARS manufactures ultrasonic transducers for applications as diverse as flaw detection, thickness gaging, materials research and medical diagnostics. We have developed more than 300 transducer types consisting of both standard catalog units and special designs. Over the years, we have been in the forefront of ultrasonic technology, introducing innovative products and solving difficult application problems.
Ultrasonic cleaners are used to clean many different types of objects, including jewelry, lenses and other optical parts, watches, dental and surgical instruments, tools, coins, fountain pens, golf clubs, fishing reels, window blinds, firearms, car fuel injectors, musical instruments, gramophone records, industrial parts and electronic equipment. They are used in many jewelry workshops, watchmakers' establishments, and electronic repair workshops.
transducer can be used for different ultrasonic areas , such as :
1) Ultrasonic cleaning equipment
2) Immersed ultrasonic transducer
3) Ultarsonic water treatment
4) Ultrasonic cavitaiton
5) Ultrasonic pipe cleaning
Advantages:
• Imported original piezoelectric ceramic wafer guarantee strong and steady output of ultrasonic power;
• High efficiency : high quality mechine, high electro-acoustic conversion efficiency at the resonant frequencies;
• Large amplitude : computer optimized structure, high vibration ratio , large amplitude front cover;
• High power: In the influence of pre-stressed screw, piezoelectric ceramic energy can achieve to the most;
• Heat-resistance: small resonant impedance, low heat, wide temperature range.
| Type | Length(mm) | Weight(g) | Frequency(KHz) | Resonance Impedance
(Ω) | Static Capacity
(pF)±10% | Input Power(W) |
ARS-QXHNQ-20100
PZT-8 | 94 | 900 | 20 | 10-20 | 5200 | 100 |
ARS-QXHNQ-25100
PZT-4 | 77 | 710 | 25 | 10-20 | 6600 | 100 |
ARS-QXHNQ-28100
PZT-8 | 66 | 625 | 28 | 10-20 | 5200 | 100 |
ARS-QXHNQ-28100
PZT-4 | 66 | 624 | 28 | 10-20 | 6600 | 100 |
ARS-QXHNQ-30100
PZT-8 | 61 | 555 | 30 | 10-20 | 5200 | 100 |
ARS-QXHNQ-2560
PZT-4 | 77 | 530 | 25 | 10-20 | 5400 | 60 |
ARS-QXHNQ-2860
PZT-8 | 68 | 470 | 28 | 10-20 | 3800 | 60 |
ARS-QXHNQ-2850
PZT-4 | 82 | 425 | 28 | 10-20 | 4100 | 50 |
ARS-QXHNQ-3360
PZT-8 | 58 | 420 | 33 | 10-20 | 3800 | 60 |
ARS-QXHNQ-4060
PZT-8 | 55 | 300 | 40 | 10-20 | 3800 | 60 |
ARS-QXHNQ-4060
PZT-4 | 56 | 310 | 40 | 10-20 | 5400 | 60 |
ARS-QXHNQ-4050
PZT-4 | 54 | 260 | 40 | 10-20 | 4100 | 50 |
ARS-QXHNQ-4050-1
PZT-4 | 57 | 300 | 40 | 10-20 | 4100 | 50 |
ARS-QXHNQ-5435
PZT-4 | 36 | 135 | 54 | 10-20 | 3200 | 35 |
ARS-QXHNQ-6860
PZT-8 | 80 | 460 | 68 | 10-20 | 3800 | 60 |
ARS-QXHNQ-68120
PZT-4 | 67 | 588 | 68 | 10-20 | 7800 | 120 |
ARS-QXHNQ-8060
PZT-4 | 60 | 325 | 80 | 10-20 | 5400 | 60 |
ARS-QXHNQ-12060
PZT-4 | 56 | 260 | 120 | 10-20 | 5400 | 60 |
ARS-QXHNQ-13550
PZT-4 | 54 | 215 | 135 | 10-20 | 4200 | 50 |
