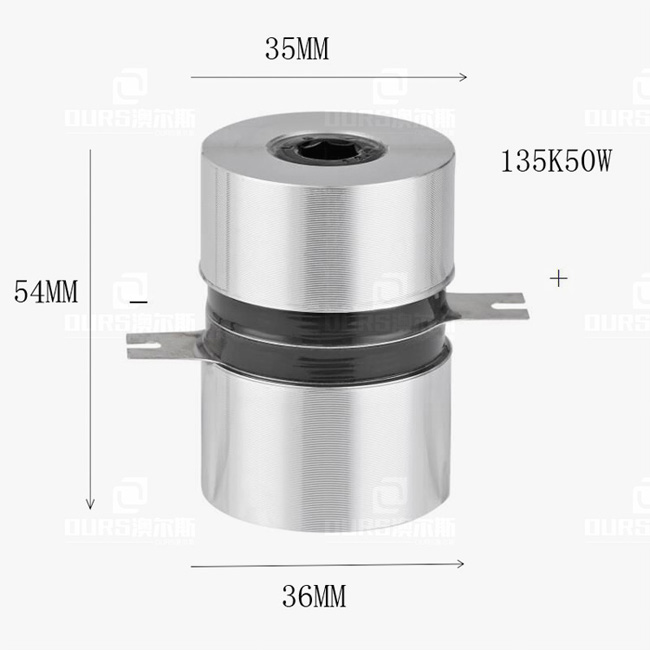

High Frequency Ultrasonic Cleaning Transducer For Laboratory Cleaning 54mm*36mm*35mm
Sound that is generated above the level of human hearing range is called ultrasound. Although ultrasound typically starts at 20 KHz, most ultrasonic transducers start at 200 KHz. Ultrasound, which is similar in nature to audible sound, has far shorter wavelengths and is far more suitable to detect small flaws. These shorter wavelengths are what make ultrasound and ultrasonic transducers extremely useful for nondestructive testing and measurement of materials.
Piezoelectric transducers were the first to be used when in the 1950’s crystals derived from quartz were used as the transducer material. Within a few years ceramics were introduced and have been refined ever since.
An ultrasonic transducer itself is a device that is capable of generating and receiving ultrasonic vibrations. An ultrasonic transducer is made up of an active element, a backing, and wearplate. The active element is a piezoelectric or single crystal material which converts electrical energy to ultrasonic energy. It will also then receives back ultrasonic energy and converts it to electrical energy. The electrical energy pulse is generated from an instrument such as a flaw detector.
Characteristics:
- High performance with high mechanical Q.
- High transfer efficiency.
- Large amplitude.
- High quality piezoelectric ceramic material: good heat resistance,large range of working temperature.
- lower Resonant Impedance.
Our Advantage:
Shippment:
We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
Products Warranty:
The material which we sales will be for one year free maintain if caused by quality itself problem,and to sure operation in correct methods.
If the products damaged owing to your uncorrected use,we will refuse the returned and will be required charge for maintain or replace,please understand.
Don’t mail anything back to us before without any communication with our service,thank you!
| Type | Length(mm) | Weight(g) | Frequency(KHz) | Resonance Impedance
(Ω) | Static Capacity
(pF)±10% | Input Power(W) |
ARS-QXHNQ-20100
PZT-8 | 94 | 900 | 20 | 10-20 | 5200 | 100 |
ARS-QXHNQ-25100
PZT-4 | 77 | 710 | 25 | 10-20 | 6600 | 100 |
ARS-QXHNQ-28100
PZT-8 | 66 | 625 | 28 | 10-20 | 5200 | 100 |
ARS-QXHNQ-28100
PZT-4 | 66 | 624 | 28 | 10-20 | 6600 | 100 |
ARS-QXHNQ-30100
PZT-8 | 61 | 555 | 30 | 10-20 | 5200 | 100 |
ARS-QXHNQ-2560
PZT-4 | 77 | 530 | 25 | 10-20 | 5400 | 60 |
ARS-QXHNQ-2860
PZT-8 | 68 | 470 | 28 | 10-20 | 3800 | 60 |
ARS-QXHNQ-2850
PZT-4 | 82 | 425 | 28 | 10-20 | 4100 | 50 |
ARS-QXHNQ-3360
PZT-8 | 58 | 420 | 33 | 10-20 | 3800 | 60 |
ARS-QXHNQ-4060
PZT-8 | 55 | 300 | 40 | 10-20 | 3800 | 60 |
ARS-QXHNQ-4060
PZT-4 | 56 | 310 | 40 | 10-20 | 5400 | 60 |
ARS-QXHNQ-4050
PZT-4 | 54 | 260 | 40 | 10-20 | 4100 | 50 |
ARS-QXHNQ-4050-1
PZT-4 | 57 | 300 | 40 | 10-20 | 4100 | 50 |
ARS-QXHNQ-5435
PZT-4 | 36 | 135 | 54 | 10-20 | 3200 | 35 |
ARS-QXHNQ-6860
PZT-8 | 80 | 460 | 68 | 10-20 | 3800 | 60 |
ARS-QXHNQ-68120
PZT-4 | 67 | 588 | 68 | 10-20 | 7800 | 120 |
ARS-QXHNQ-8060
PZT-4 | 60 | 325 | 80 | 10-20 | 5400 | 60 |
ARS-QXHNQ-12060
PZT-4 | 56 | 260 | 120 | 10-20 | 5400 | 60 |
ARS-QXHNQ-13550
PZT-4 | 54 | 215 | 135 | 10-20 | 4200 | 50 |
135khz high frequency ultrasonic transducer for Laboratory cleaning
