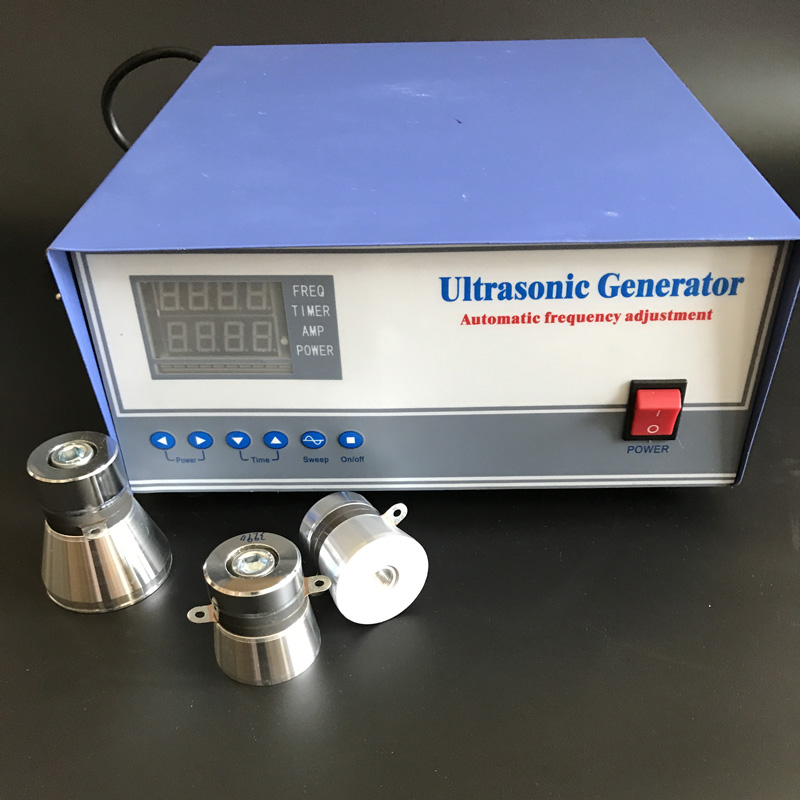

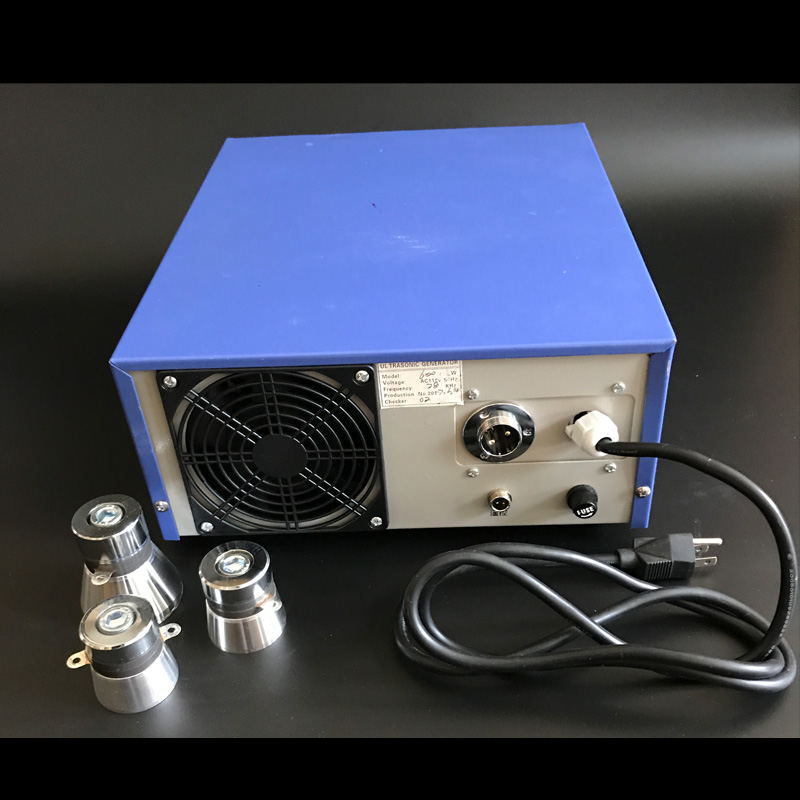

220V Ultrasonic Sound Generator For Cleaning Machine / 2000W Ultrasonic Cleaner Generator

Name: 220V Ultrasonic Sound Generator For Cleaning Machine 2000W Ultrasonic Cleaner Generator
Brand: OURS ULTRASONIC
Price: 25 USD

220V Ultrasonic Sound Generator For Cleaning Machine / 2000W Ultrasonic Cleaner Generator Manufactures

Brand Name : OURS ULTRASONIC

Model Number : ARS-QXDY

Certification : CE AND FCC

Place of Origin : SHENZHEN,CHINA

MOQ : 1set

Price : USD25-USD400

Payment Terms : T/T, Western Union,PAYPAL

Supply Ability : 10000set

Delivery Time : 1-3days

Packaging Details : CARTON BOX&FOAM

FR : 20KHZ-200KHZ

POWER : 300W-3000W

Voltage : 110V 120Vor 220V 230V240V

TIMER : HAVE

Clean Type : Industrial Ultrasonic Cleaner

Machine Type : Ultrasonic Generator

WARATEE : 1 YEAR

LEADTIME : 1-3DAYS

APPLICATION : ULTRASONIC INDUSTRY CLEANING

Contact Now

Degas ultrasonic generator for cleaning machine 2000W/3000W Degas ultrasonic cleaner generator

Piezoelectric transducer is a kind of transducer of acoustic energy and electrical energy. Its working efficiency directly affects the performance of the whole ultrasonic measurement system. The design of driving circuit of piezoelectric transducer involves impedance matching and pulse transformer design, which needs not only a certain theoretical basis, but also a technology of practical experience. It brings certain difficulties to the design of researchers and researchers. At present, the driving circuit of piezoelectric transducer in China is mainly designed by two methods: One is direct drive: using a fixed frequency, high-power semiconductor switching devices, such as field effect transistors, controllable direct drive piezoelectric transducer work, the transducer is directly powered by the power supply voltage.

Type	Power(W)	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
ARS-QXDY-300W	300W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
ARS-QXDY-600W	600W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
ARS-QXDY-900W	900W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
ARS-QXDY-1000W	1000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
ARS-QXDY-1200W	1200W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
ARS-QXDY-1500W	1500W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
ARS-QXDY-1800W	1800W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
ARS-QXDY-2000W	2000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
ARS-QXDY-2400W	2400W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
ARS-QXDY-3000W	3000W	17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency	100W-300W	175-200KHZ
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
