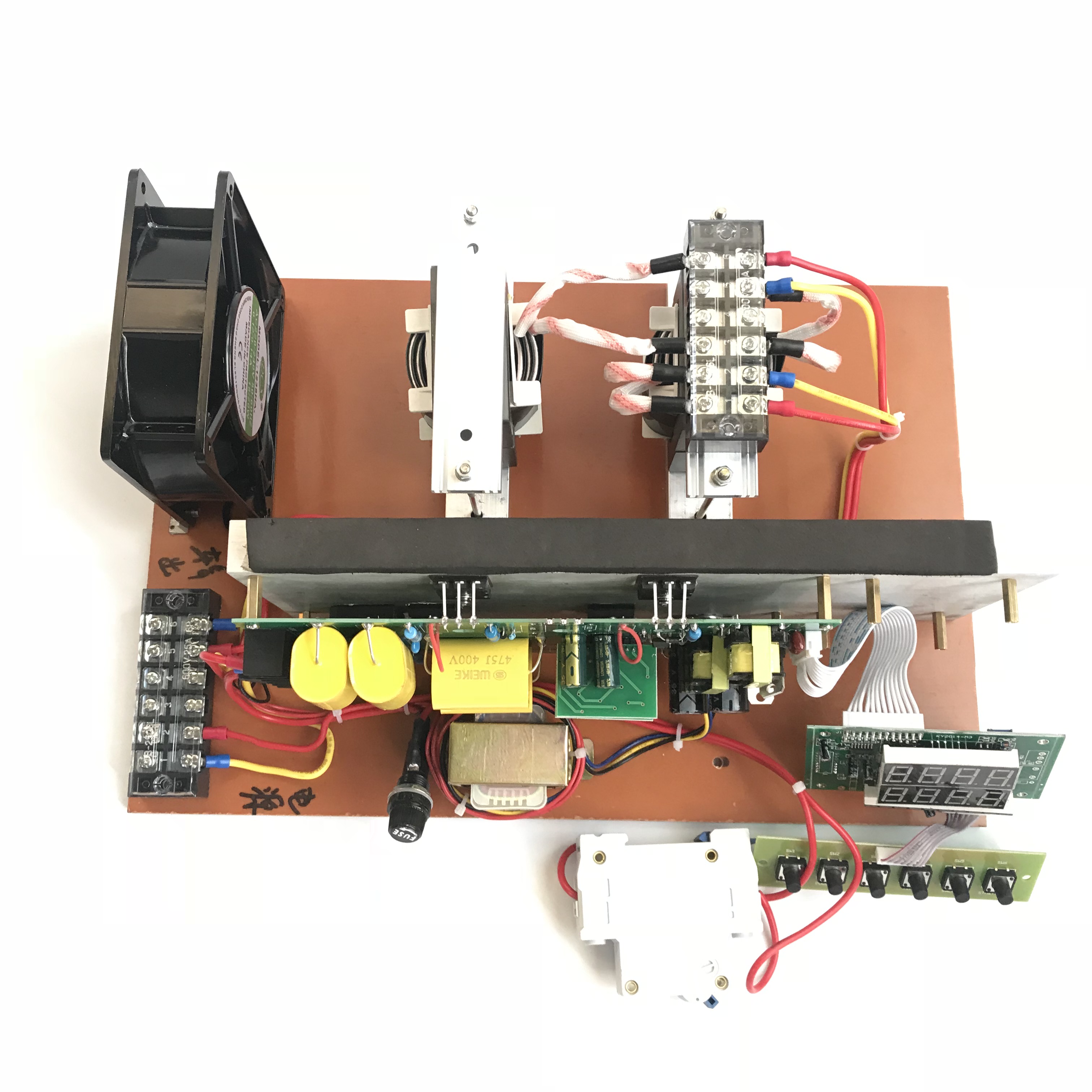

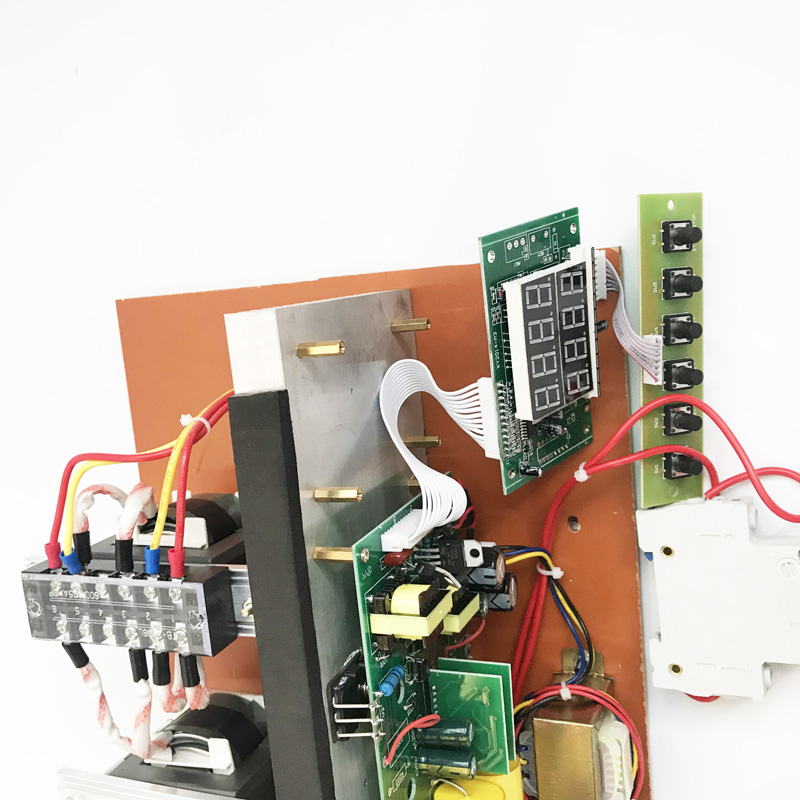

Ultrasonic power driving circuit 28K or 40K for ultrasonic dishwasher machine 1000W/2000w
Machine Intelligent Protection Function:
1. It has short circuit protection function.
2. Overcurrent and overvoltage protection to prevent machine damage caused by unstable voltage;
3. Fully enclosed design of chassis, with anti-corrosion function of circuit;
4. Increase the protection function of head shedding.
5. Unique over-temperature protection function, over 65 degrees automatically shut down and rest, to prevent damage to the motherboard temperature is too high.
6. Setting up PLC remote control interface to facilitate the connection with other control equipment;
Debugging of Digital Display 25khz/28khz/40khz Generator The necessary tools for debugging generator are clamp current meter, multimeter, cross screwdriver, small screwdriver and insulating gasket. Firstly, the multimeter is used to check whether the positive and negative poles of the ultrasonic oscillator are short-circuited and whether the positive and negative poles are connected to each other. The positive and negative poles of the ultrasonic oscillator are correctly connected to the terminals of the output positive and negative poles of the generator.
| Type | Frequency | Power | Dimension
(mm) | Transducer numbers |
| ARS-DLB50W | 25khz,28khz,33khz,40khz | 50W | 132×85×45mm | 1 piece |
| ARS-DLB60W | 25khz,28khz,33khz,40khz | 60W | 132×85×45mm | 1 piece |
| ARS-DLB100W | 25khz,28khz,33khz,40khz | 100W | 132×85×45mm | 1-2 pieces |
| ARS-DLB120W | 25khz,28khz,33khz,40khz | 120W | 132×85×45mm | 1-2 pieces |
| ARS-DLB150W | 25khz,28khz,33khz,40khz | 150W | 132×85×45mm | 1-3 pieces |
| ARS-DLB200W | 25khz,28khz,33khz,40khz,80khz,100khz,135khz | 200W | 180×130×60mm | 4 pieces |
| ARS-DLB300W | 25khz,28khz,33khz,40khz | 300W | 180×130×60mm | 6 pieces |
| ARS-DLB400W | 25khz,28khz,33khz,40khz | 400W | 180×130×60mm | 8 pieces |
| ARS-DLB500W | 25khz,28khz,33khz,40khz | 500W | 180×130×60mm | 10 pieces |
| ARS-DLB600W | 25khz,28khz,33khz,40khz | 600W | 180×130×60mm | 12 pieces |
| | | | | |
| Ultrasonic PCB generator could to 2400W,welcome send the enquire 200W-600W Ultrasonic PCB frequency adjustable,display board is optional Above ultrasonic PCB generator 110V-120V or 220V-240V are available,contact with us during your order with detail request |
